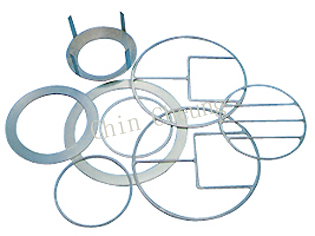

RaloTex Metal Jacketed Gaskets

 Metal jacketed gaskets comprise of a thin metallic outer shell enclosing a resilient filler

 material. The gaskets metal case protects the resilient filler and is resistant to pressure,

 temperature and corrosion.

Description:

Metal jacketed gaskets comprise of a thin metallic outer shell enclosing a resilient filler material. The gaskets metal case protects the resilient filler and is resistant to pressure, temperature and corrosion.

Metal jacketed gaskets are hand made and are available in many shapes and sizes with a selection of metals and fillers available. Internal ribs of any configuration are available.

Filler Material: Normally graphite but PTFE, ceramic and non asbestos are also available.

Jacket Material: Soft iron, SS316, SS304, brass, copper, Inconel and others.

Application:

These gaskets are widely used in heat exchanger applications but require good and even flange surfaces along with high bolt loads to effect a seal.

Double Jacketed Style 300: Used on high temperature applications e.g. heat exchangers. The filler is totally enclosed in a two-piece metal jacket.
