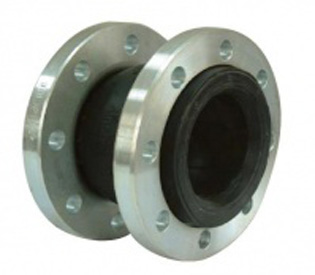

Mould Rubber Expansion Joint

Used both for suction & delivery

Easy installation on piping due to soft construction

Excellent ability to isolate sound and vibration

Technical data:

Maximum Operating Pressure: 250 psi

Temperature: up to + 105℃

Product Standard:

Size Range: ID 1-1/4” ~ ID 24”

Length of Belows: 95~255 mm (face to face distance)

Material: Neoprene, EPDM,Chrolobutyl

Material of End Connections: Carbon steel, SS 304, SS 316

Type of connections: Floating Flanges

Flange: As per BS, ASA, DIN, JIS
