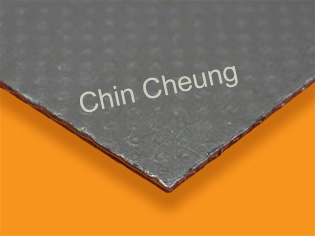

 RaloTex Flexible Graphite Laminates
Generally used in more demanding, higher temperature applications
including the power plant, petrochemical and refining industries.
Excellent chemical resistance and good compressibility.
Our proprietary exfoliated graphite with different types of metal cores
Description: RALFOIL is manufactured from our proprietary exfoliated graphite and is available with different types of metal cores, including high quality stainless steel and nickel reinforcement. RALFOIL Flexible Graphite is a distinctive material with the essential characteristics of graphite plus some unique properties which make it an almost ideal material for packing and gaskets.
Applications: RALFOIL is suitable for use in heat exchanger, power plants, liquid gas plants, petroleum refining and chemical industry.
Available Style:
RFF Exfoliated Graphite w/o insert.
RNR Exfoliated graphite reinforced with nickel foil.
RSS Exfoliated graphite reinforced with 0.05mm 316 stainless steel foil.
RTS Exfoliated graphite reinforced with 0.1mm 316 tanged stainless steel.
Technical data:
|
Temperature Range: |
|
|
Steam Condition: |
-200°C to 600°C |
|
Inert or Reducing Conditions: |
-260°C to 2900°C |
|
Pressure, max: |
3,190 psi (220 Bar) |
|
Fluid Resistance - pH Range: |
0 to 14 at room temperature 40% |
|
Colour: |
Black |
Product Standard:
Thickness: 0.2 / 0.35 / 0.75 / 0.75 / 1.0 / 1.5 / 2.0 / 3.0 and 4.0 mm
Sheet size:
Standard: 1.0m x 1.0m , 1.5m x 1.0m |
